EC3AB35

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-12V 3W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 201

Can ship immediately

Pricing:
  • 1$13.93
  • 5$13.79154
  • 10$13.65308
  • 25$13.37994
  • 50$12.9784
  • 100$12.45916

Quote It

Technical Details

  • Series:EC3AB (3W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):36V
  • Voltage - Input (Max):72V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-12V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):125mA, 125mA
  • Power (Watts):3 W



  • Voltage - Isolation:500 V
  • Applications:ITE (Commercial)
  • Features:SCP
  • Operating Temperature:-25°C ~ 71°C
  • Efficiency:76%
  • Mounting Type:Through Hole
  • Package / Case:24-DIP Module, 14 Leads
  • Size / Dimension:1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


TEN 3-2412WIN

DC DC CONVERTER 12V 3W

TEN 3-2412WIN Datasheet
  • 1: $14.00000
  • 10: $12.44166
  • 25: $12.25048

TRS 2-0912

DC DC CONVERTER 12V 2W

TRS 2-0912 Datasheet
  • 1: $14.02000
  • 10: $13.80384
  • 25: $13.59172

TRS 2-4815

DC DC CONVERTER 24V 2W

TRS 2-4815 Datasheet
  • 1: $14.02000
  • 10: $13.80384
  • 25: $13.59172

TRS 2-0913

DC DC CONVERTER 15V 2W

TRS 2-0913 Datasheet
  • 1: $14.02000
  • 10: $13.80384
  • 25: $13.59172

TRS 2-4810

DC DC CONVERTER 3.3V 1.7W

TRS 2-4810 Datasheet
  • 1: $14.02000
  • 10: $13.80384
  • 25: $13.59172

TRS 2-4812

DC DC CONVERTER 12V 2W

TRS 2-4812 Datasheet
  • 1: $14.02000
  • 10: $13.80384
  • 25: $13.59172

NTH0509MC

DC DC CONVERTER +/-9V 2W

NTH0509MC Datasheet
  • 1: $14.04000
  • 5: $13.98000
  • 10: $13.88000

EC4SAW-48D12N

DC DC CONVERTER +/-12V 6W

  • 1: $14.12000
  • 5: $14.01334
  • 10: $13.90669

NDL0512SC

DC DC CONVERTER 12V 2W

NDL0512SC Datasheet
  • 1: $14.18000
  • 5: $14.10713
  • 10: $14.01240

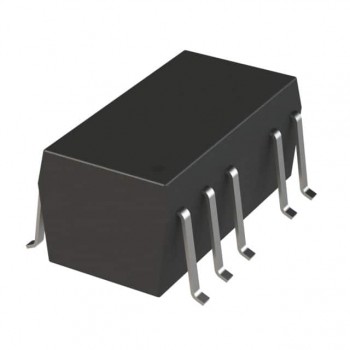

TSV 0505S
