EC4A05H-E

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-15V 6W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 124

Can ship immediately

Pricing:
  • 1$14.68
  • 5$14.53399
  • 10$14.38797
  • 25$14.09998
  • 50$13.67722
  • 100$13.13

Quote It

Technical Details

  • Series:EC4A-E (6W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):18V
  • Voltage - Output 1:15V
  • Voltage - Output 2:-15V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):200mA, 200mA
  • Power (Watts):6 W



  • Voltage - Isolation:3 kV
  • Applications:ITE (Commercial)
  • Features:SCP, UVLO
  • Operating Temperature:-40°C ~ 100°C (With Derating)
  • Efficiency:85%
  • Mounting Type:Through Hole
  • Package / Case:24-DIP Module, 14 Leads
  • Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


EC4A15H-E

DC DC CONVERTER +/-15V 6W

  • 1: $14.68000
  • 5: $14.53320
  • 10: $14.38755

EC4A16H-E

DC DC CONVERTER +/-5V 5W

  • 1: $14.68000
  • 5: $14.53320
  • 10: $14.38755

EC4A25H-E

DC DC CONVERTER +/-15V 6W

  • 1: $14.68000
  • 5: $14.53320
  • 10: $14.38755

EC4A04H-E

DC DC CONVERTER +/-12V 6W

  • 1: $14.68000
  • 5: $14.53399
  • 10: $14.38797

EC4A06H-E

DC DC CONVERTER +/-5V 5W

  • 1: $14.68000
  • 5: $14.53320
  • 10: $14.38755

PVB3-D24-D5-D

DC DC CONVERTER +/-5V 3W

PVB3-D24-D5-D Datasheet
  • 1: $14.69000
  • 7: $14.57429
  • 14: $14.46286

PVB3-D48-D12-D

DC DC CONVERTER +/-12V 3W

PVB3-D48-D12-D Datasheet
  • 1: $14.69000
  • 5: $14.57400
  • 15: $14.46267

PVB3-D48-D5-D

DC DC CONVERTER +/-5V 3W

PVB3-D48-D5-D Datasheet
  • 1: $14.69000
  • 7: $14.57429
  • 14: $14.46286

PVB3-D48-S5-D

DC DC CONVERTER 5V 3W

PVB3-D48-S5-D Datasheet
  • 1: $14.69000
  • 7: $14.57429
  • 14: $14.46286

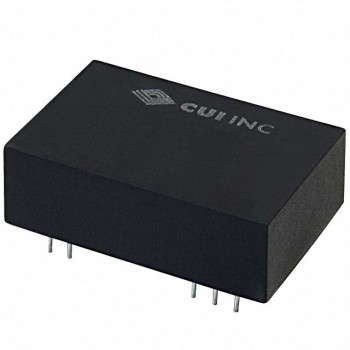

PVB3-D24-S15-D
