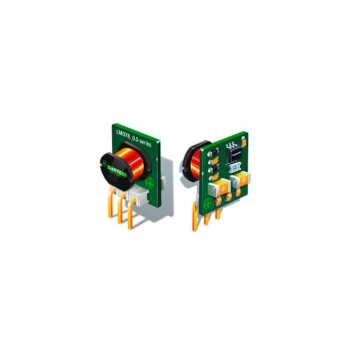

LMO78_05-0.5

Technical Details

• Series:LMO78_0.5
• Package:Tube
• Part Status:Active
• Type:Non-Isolated PoL Module
• Number of Outputs:2
• Voltage - Input (Min):6.5V, 7V
• Voltage - Input (Max):36V, 31V
• Voltage - Output 1:5V
• Voltage - Output 2:-5V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):500mA, 300mA
• Power (Watts):4 W

• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:3-SIP Module
• Size / Dimension:0.39" L x 0.28" W x 0.43" H (10.0mm x 7.2mm x 11.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE, cURus
• Standard Number:-
