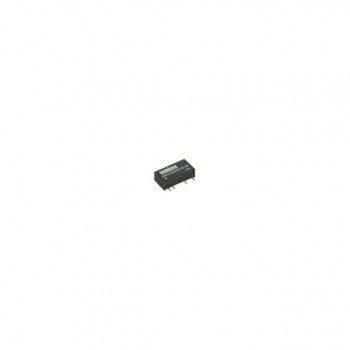

AM2DS-1215SH30-NZ
DComponents
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER 15V 2W
- CategoryDC DC Converters
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$4.58
Quote It
Technical Details
- Series:AM2DS-NZ (2W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:1
- Voltage - Input (Min):10.8V
- Voltage - Input (Max):13.2V
- Voltage - Output 1:15V
- Voltage - Output 2:-
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):133mA
- Power (Watts):2 W
- Voltage - Isolation:3 kV
- Applications:ITE (Commercial)
- Features:-
- Operating Temperature:-40°C ~ 105°C (With Derating)
- Efficiency:84%
- Mounting Type:Through Hole
- Package / Case:7-SIP Module, 4 Leads
- Size / Dimension:0.77" L x 0.28" W x 0.41" H (19.6mm x 7.0mm x 10.5mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:cULus, cURus
- Standard Number:-
