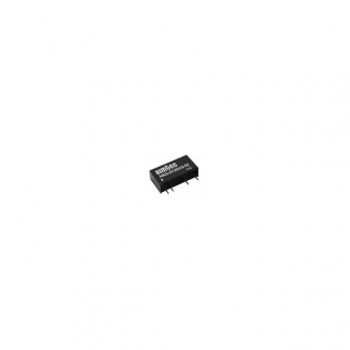

AM1D-1205D-RZ

Technical Details

• Series:AM1D-RZ (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):10.8V
• Voltage - Input (Max):13.2V
• Voltage - Output 1:5V
• Voltage - Output 2:-5V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):100mA, 100mA
• Power (Watts):1 W

• Voltage - Isolation:1 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:7-SIP Module, 5 Leads
• Size / Dimension:0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:-
