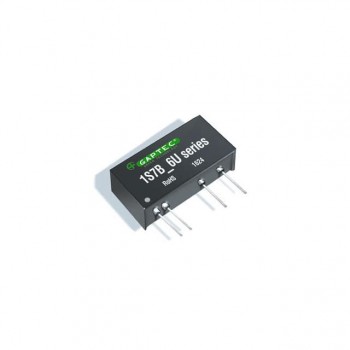

1S7BE_0524D6U

Technical Details

• Series:1S7B_6U (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):4.75V
• Voltage - Input (Max):5.25V
• Voltage - Output 1:24V
• Voltage - Output 2:-24V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):21mA, 21mA
• Power (Watts):1 W

• Voltage - Isolation:6 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:82%
• Mounting Type:Through Hole
• Package / Case:7-SIP Module, 5 Leads
• Size / Dimension:0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
