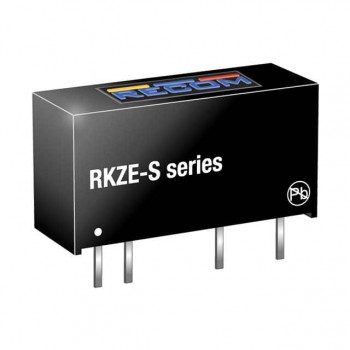

RKZE-0509S/P

Technical Details

• Series:RKZE (2W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):5.5V
• Voltage - Output 1:9V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):222mA
• Power (Watts):2 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 80°C
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:7-SIP Module, 4 Leads
• Size / Dimension:0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
