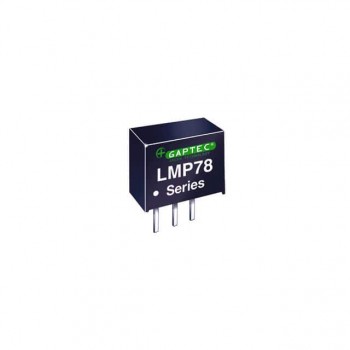

LMP78_12-1.0R

Technical Details

• Series:LMP78_1.0
• Package:Tube
• Part Status:Active
• Type:Non-Isolated PoL Module
• Number of Outputs:1
• Voltage - Input (Min):14V
• Voltage - Input (Max):42V
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):1A
• Power (Watts):12 W

• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Efficiency:97%
• Mounting Type:Through Hole
• Package / Case:3-SIP Module
• Size / Dimension:0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
