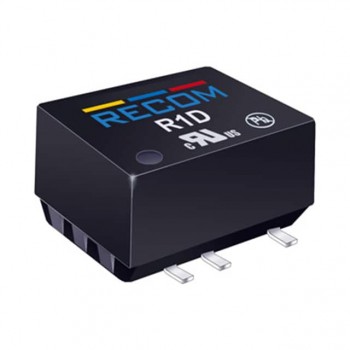

R1D12-1505/HP

Technical Details

• Series:ECONOLINE R1D (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):13.5V
• Voltage - Input (Max):16.5V
• Voltage - Output 1:5V
• Voltage - Output 2:-5V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):100mA, 100mA
• Power (Watts):1 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial), Medical
• Features:SCP
• Operating Temperature:-40°C ~ 100°C
• Efficiency:78%
• Mounting Type:Surface Mount
• Package / Case:12-SMD Module, 10 Leads
• Size / Dimension:0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
