LCW78_05-1.0

Technical Details

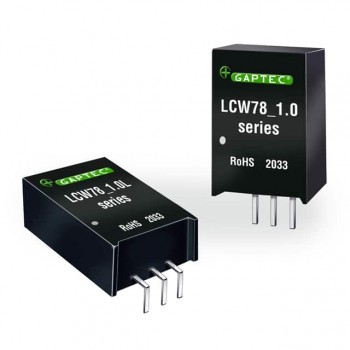

• Series:LCW78_1.0
• Package:Tube
• Part Status:Active
• Type:Non-Isolated PoL Module
• Number of Outputs:1
• Voltage - Input (Min):8V
• Voltage - Input (Max):72V
• Voltage - Output 1:5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):1A
• Power (Watts):5 W

• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 100°C (With Derating)
• Efficiency:86%
• Mounting Type:Through Hole
• Package / Case:3-SIP Module
• Size / Dimension:0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
