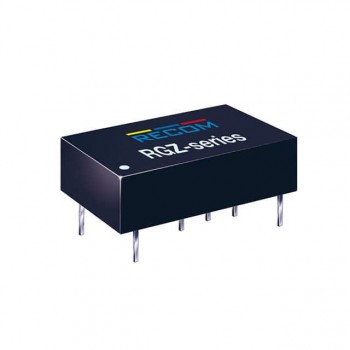

RGZ-0512D/HP

Technical Details

• Series:ECONOLINE RGZ (2W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):5.5V
• Voltage - Output 1:12V
• Voltage - Output 2:-12V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):84mA, 84mA
• Power (Watts):2 W

• Voltage - Isolation:4 kV
• Applications:ITE (Commercial), Medical
• Features:SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:82%
• Mounting Type:Through Hole
• Package / Case:14-DIP Module, 6 Leads
• Size / Dimension:0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
