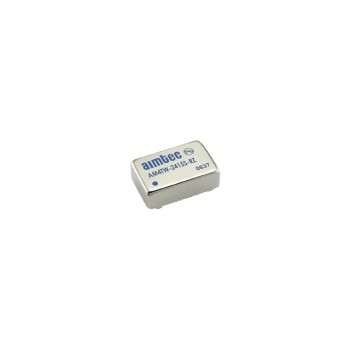

AM4TW-4803DH35Z

Technical Details

• Series:AM4TW-Z (4W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):18V
• Voltage - Input (Max):72V
• Voltage - Output 1:3.3V
• Voltage - Output 2:-3.3V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):600mA, 600mA
• Power (Watts):4 W

• Voltage - Isolation:3.5 kV
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:75%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 8 Leads
• Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:-
