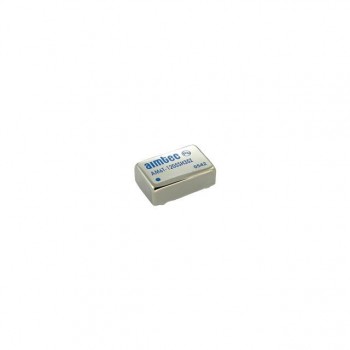

AM5T-2418DZ

Technical Details

• Series:AM5T-Z (5W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):18V
• Voltage - Input (Max):36V
• Voltage - Output 1:18V
• Voltage - Output 2:-18V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):138mA, 138mA
• Power (Watts):5 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, Remote Sense
• Operating Temperature:-40°C ~ 85°C
• Efficiency:80%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 8 Leads
• Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:-
