REC3.5-0505DRW/R10/C

Technical Details

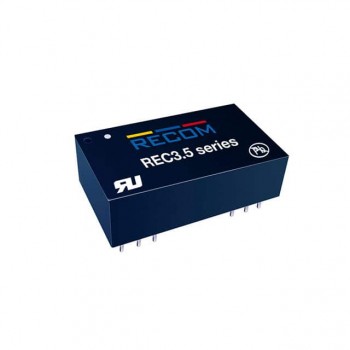

• Series:ECONOLINE REC3.5/R (3.5W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):9V
• Voltage - Output 1:5V
• Voltage - Output 2:-5V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):350mA, 350mA
• Power (Watts):3.5 W

• Voltage - Isolation:10 kV
• Applications:ITE (Commercial), Medical
• Features:SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:77%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 9 Leads
• Size / Dimension:1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
