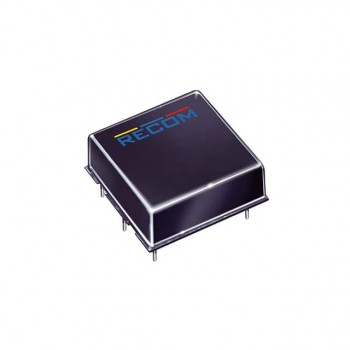

RPA20-2412DAW-HC

Technical Details

• Series:POWERLINE RPA20-AW (20W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:12V
• Voltage - Output 2:-12V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):830mA, 830mA
• Power (Watts):20 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial), Railway
• Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Efficiency:88%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module
• Size / Dimension:1.00" L x 1.00" W x 0.66" H (25.4mm x 25.4mm x 16.8mm)
• Supplier Device Package:6-DIP Module
• Control Features:-
• Approval Agency:-
• Standard Number:-
