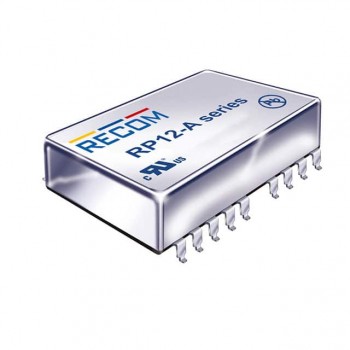

RP12-123.3SA/SMD

Technical Details

• Series:POWERLINE RP12-A (12W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:3.3V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):3.5A
• Power (Watts):12 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, OVP, SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:84%
• Mounting Type:Surface Mount
• Package / Case:24-SMD Module, 18 Leads
• Size / Dimension:1.26" L x 0.80" W x 0.44" H (32.0mm x 20.3mm x 11.2mm)
• Supplier Device Package:-
• Control Features:Enable, Active High
• Approval Agency:-
• Standard Number:-
