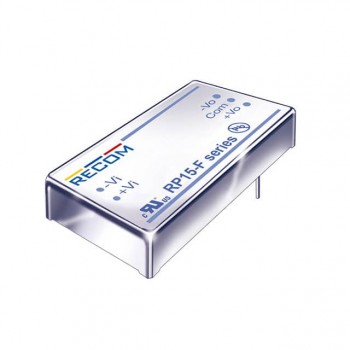

RP15-1215SA/P-HC

Technical Details

• Series:POWERLINE RP15-A (15W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):1A
• Power (Watts):15 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, OVP, SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:87%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module, 4 Leads
• Size / Dimension:1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package:-
• Control Features:Enable, Active High
• Approval Agency:-
• Standard Number:-
