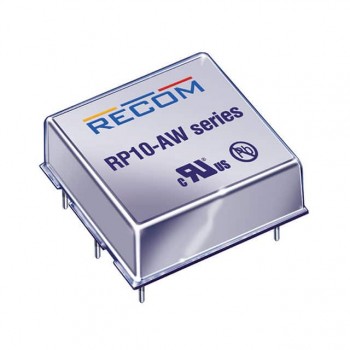

RP10-2412DAW/N

Technical Details

• Series:POWERLINE RP10-AW (10W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:12V
• Voltage - Output 2:-12V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):416mA, 416mA
• Power (Watts):10 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 81°C
• Efficiency:89%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module
• Size / Dimension:1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package:-
• Control Features:Enable, Active Low
• Approval Agency:cURus, EAC
• Standard Number:-
