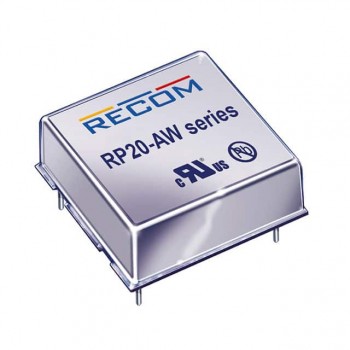

RP20-4815DA/N-HC

Technical Details

• Series:POWERLINE RP20-A (20W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):36V
• Voltage - Input (Max):75V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):677mA, 677mA
• Power (Watts):20 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 90°C
• Efficiency:90%
• Mounting Type:Through Hole
• Package / Case:6-SIP Module
• Size / Dimension:1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package:-
• Control Features:Enable, Active Low
• Approval Agency:-
• Standard Number:-
