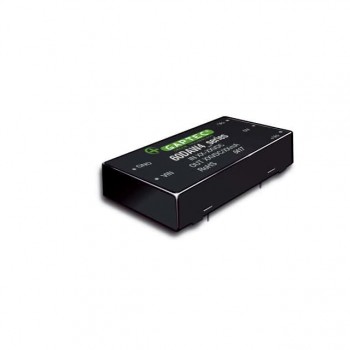

60DAW4_4812D1.6

Technical Details

• Series:60DAW4_1.6 (60W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):18V
• Voltage - Input (Max):75V
• Voltage - Output 1:12V
• Voltage - Output 2:-12V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):2.5A, 2.5A
• Power (Watts):60 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off
• Operating Temperature:-40°C ~ 100°C (With Derating)
• Efficiency:91%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module
• Size / Dimension:2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:CE
• Standard Number:60950-1
