RP40Q-11005SRUW/N-HC

Technical Details

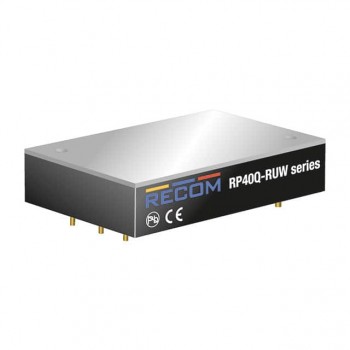

• Series:POWERLINE RP40Q-RUW (40W)
• Package:Tray
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):16V
• Voltage - Input (Max):160V
• Voltage - Output 1:5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):8A
• Power (Watts):40 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial), Railway
• Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 105°C (With Derating)
• Efficiency:91%
• Mounting Type:Through Hole
• Package / Case:Quarter Brick
• Size / Dimension:2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm)
• Supplier Device Package:Quarter Brick
• Control Features:-
• Approval Agency:-
• Standard Number:-
