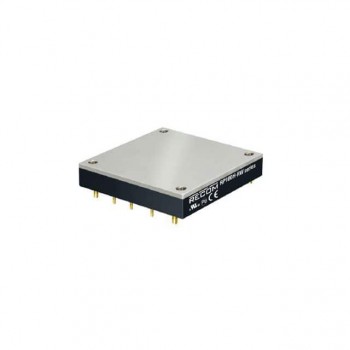

RP120Q-4815SRW/N-HC

Technical Details

• Series:POWERLINE RP120-RW (120W)
• Package:Tray
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):16.5V
• Voltage - Input (Max):75V
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):8A
• Power (Watts):120 W

• Voltage - Isolation:2.25 kV
• Applications:ITE (Commercial), Railway
• Features:OCP, OTP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 100°C (With Derating)
• Efficiency:90%
• Mounting Type:Through Hole
• Package / Case:Quarter Brick
• Size / Dimension:2.28" L x 1.45" W x 0.74" H (57.9mm x 36.8mm x 18.8mm)
• Supplier Device Package:Quarter Brick
• Control Features:-
• Approval Agency:-
• Standard Number:-
