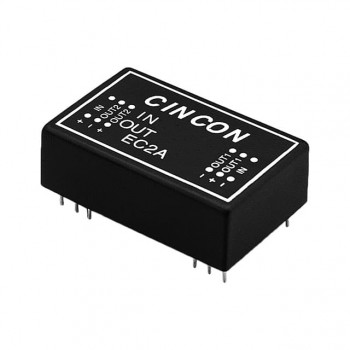

EC2A31

Technical Details

• Series:EC2A (1.5W)
• Package:Tube
• Part Status:Not For New Designs
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):25.2V
• Voltage - Input (Max):30.8V
• Voltage - Output 1:5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):300mA
• Power (Watts):1.5 W

• Voltage - Isolation:500 V
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-25°C ~ 71°C
• Efficiency:50%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 14 Leads
• Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
