EC3A04-E

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-5V 3W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 160

Can ship immediately

Pricing:
  • 1$11.73
  • 10$11.614

Quote It

Technical Details

  • Series:EC3A-E (3W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):4.5V
  • Voltage - Input (Max):9V
  • Voltage - Output 1:5V
  • Voltage - Output 2:-5V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):300mA, 300mA
  • Power (Watts):3 W



  • Voltage - Isolation:500 V
  • Applications:ITE (Commercial)
  • Features:OCP, SCP, UVLO
  • Operating Temperature:-40°C ~ 100°C (With Derating)
  • Efficiency:77%
  • Mounting Type:Through Hole
  • Package / Case:24-DIP Module, 14 Leads
  • Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


EC3A05-E

DC DC CONVERTER +/-12V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A06-E

DC DC CONVERTER +/-15V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A15-E

DC DC CONVERTER +/-12V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A16-E

DC DC CONVERTER +/-15V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A24-E

DC DC CONVERTER +/-5V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A25-E

DC DC CONVERTER +/-12V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A26-E

DC DC CONVERTER +/-15V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A34-E

DC DC CONVERTER +/-5V 3W

  • 1: $11.73000
  • 10: $11.61400

EC3A35-E

DC DC CONVERTER +/-12V 3W

  • 1: $11.73000
  • 10: $11.61400

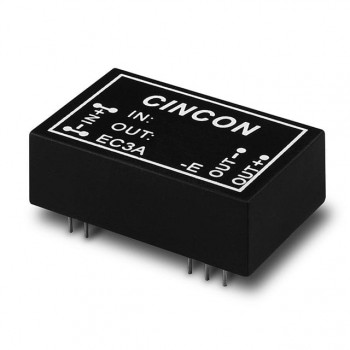

EC3A36-E
