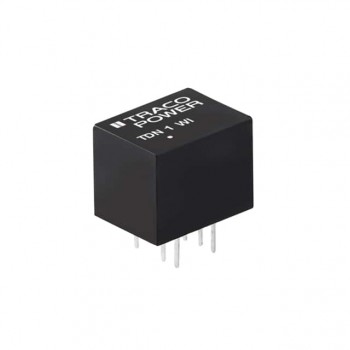

TDN 1-1210WI

Technical Details

• Series:TDN 1WI (1W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):18V
• Voltage - Output 1:3.3V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):300mA
• Power (Watts):1 W

• Voltage - Isolation:1.6 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, SCP
• Operating Temperature:-40°C ~ 90°C
• Efficiency:77%
• Mounting Type:Through Hole
• Package / Case:7-DIP Module, 6 Leads
• Size / Dimension:0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
