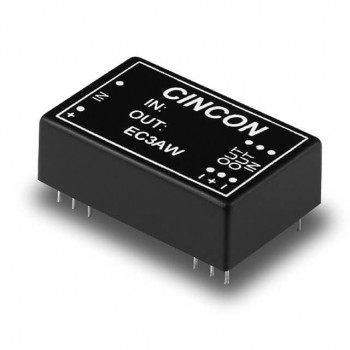

EC3AW05HM

Technical Details

• Series:EC3AW (3W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:12V
• Voltage - Output 2:-12V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):125mA, 125mA
• Power (Watts):3 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-25°C ~ 71°C
• Efficiency:72%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 14 Leads
• Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
