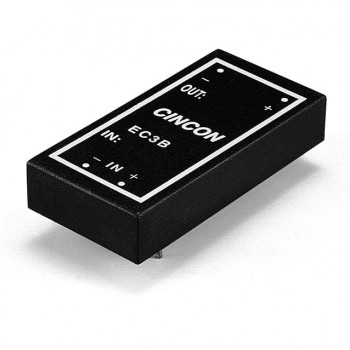

EC3BB02

Technical Details

• Series:EC3BB (7.5W)
• Package:Tube
• Part Status:Not For New Designs
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):625mA
• Power (Watts):7.5 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-25°C ~ 71°C
• Efficiency:80%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module
• Size / Dimension:2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
