EC4AW16

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-5V 5W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 141

Can ship immediately

Pricing:
  • 1$18.528
  • 10$18.34454

Quote It

Technical Details

  • Series:EC4AW (6W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):18V
  • Voltage - Input (Max):72V
  • Voltage - Output 1:5V
  • Voltage - Output 2:-5V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):500mA, 500mA
  • Power (Watts):5 W



  • Voltage - Isolation:500 V
  • Applications:ITE (Commercial)
  • Features:SCP
  • Operating Temperature:-40°C ~ 85°C (With Derating)
  • Efficiency:80%
  • Mounting Type:Through Hole
  • Package / Case:24-DIP Module, 14 Leads
  • Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


SUCW30512C

DC DC CONVERTER +/-12V

SUCW30512C Datasheet
  • 1: $18.53000
  • 5: $18.38200
  • 10: $18.24000

SUCS30505BP

DC DC CONVERTER 5V 3W

SUCS30505BP Datasheet
  • 1: $18.53000

SUCS30512BP

DC DC CONVERTER 12V 3W

SUCS30512BP Datasheet
  • 1: $18.53000

SUCS30515BP

DC DC CONVERTER 15V 3W

SUCS30515BP Datasheet
  • 1: $18.53000

SUCS3053R3BP

DC DC CONVERTER 3.3V 2W

SUCS3053R3BP Datasheet
  • 1: $18.53000

SUCS31205BP

DC DC CONVERTER 5V 3W

SUCS31205BP Datasheet
  • 1: $18.53000

SUCS31212BP

DC DC CONVERTER 12V 3W

SUCS31212BP Datasheet
  • 1: $18.53000

SUCS31215BP

DC DC CONVERTER 15V 3W

SUCS31215BP Datasheet
  • 1: $18.53000

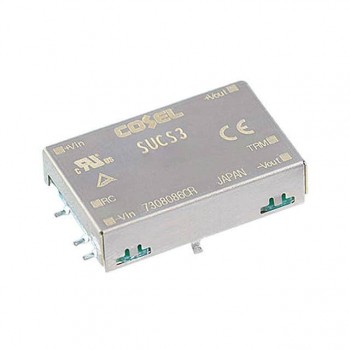

SUCS3123R3BP
