EC6AW-24D12

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-12V 8W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 191

Can ship immediately

Pricing:
  • 1$23.342
  • 10$23.111

Quote It

Technical Details

  • Series:EC6AW (8W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):36V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-12V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):333mA, 333mA
  • Power (Watts):8 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial), Railway
  • Features:Remote On/Off, OCP, OVP, SCP, UVLO
  • Operating Temperature:-40°C ~ 85°C (With Derating)
  • Efficiency:85%
  • Mounting Type:Through Hole
  • Package / Case:24-DIP Module, 9 Leads
  • Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Supplier Device Package:-
  • Control Features:Enable, Active High
  • Approval Agency:-
  • Standard Number:-

Related Products


EC6AW-48D05

DC DC CONVERTER +/-5V 8W

  • 1: $23.34200
  • 10: $23.11100

EC6AW-48D15

DC DC CONVERTER +/-15V 8W

  • 1: $23.34200
  • 10: $23.11100

DG06S0503A

DC DC CONVERTER 3.3V 6W

DG06S0503A Datasheet
  • 1: $23.39650
  • 100: $22.71500

DG06S0505A

DC DC CONVERTER 5V 6W

DG06S0505A Datasheet
  • 1: $23.39650
  • 100: $22.71500

DG06S0512A

DC DC CONVERTER 12V 6W

DG06S0512A Datasheet
  • 1: $23.39650
  • 100: $22.71500

DG06S0515A

DC DC CONVERTER 15V 6W

DG06S0515A Datasheet
  • 1: $23.39650
  • 100: $22.71500

SF05S1203A

DC DC CONVERTER 3.3V 5W

SF05S1203A Datasheet
  • 1: $23.45000

TDR 2-0522SM

DC DC CONVERTER +/-12V 2W

TDR 2-0522SM Datasheet
  • 1: $23.49700
  • 10: $23.49700

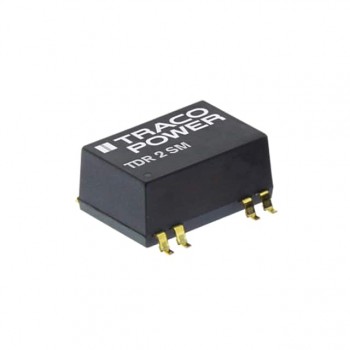

TDR 2-0523SM
