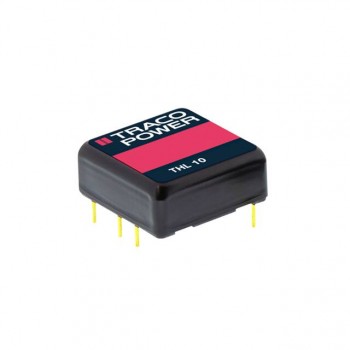

THL 10-1212

Technical Details

• Series:THL 10 (10W)
• Package:Box
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):830mA
• Power (Watts):10 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 80°C (With Derating)
• Efficiency:87%
• Mounting Type:Through Hole
• Package / Case:5-DIP Module, 4 Leads
• Size / Dimension:1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
