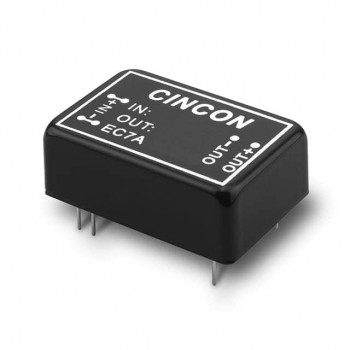

EC7A-12S25

Technical Details

• Series:EC7A (10W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:1
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:2.5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):3A
• Power (Watts):7.5 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:OCP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Efficiency:85%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 8 Leads
• Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
