EC7B-48D12

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-12V 20W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 102

Can ship immediately

Pricing:
  • 1$41.9625
  • 12$41.54676

Quote It

Technical Details

  • Series:EC7B (20W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):36V
  • Voltage - Input (Max):75V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-12V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):835mA, 835mA
  • Power (Watts):20 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, OVP, SCP, UVLO
  • Operating Temperature:-40°C ~ 85°C (With Derating)
  • Efficiency:90%
  • Mounting Type:Through Hole
  • Package / Case:6-DIP Module
  • Size / Dimension:2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Supplier Device Package:-
  • Control Features:Enable, Active High
  • Approval Agency:-
  • Standard Number:-

Related Products


EC7B-48D15

DC DC CONVERTER +/-15V 20W

  • 1: $41.96250
  • 12: $41.54676

EC7B-12D12N

DC DC CONVERTER +/-12V 20W

  • 1: $41.96250
  • 12: $41.54676

EC7B-12D15N

DC DC CONVERTER +/-15V 20W

  • 1: $41.96250
  • 12: $41.54676

EC7B-24S18N

DC DC CONVERTER 1.8V 11W

  • 1: $41.96250
  • 12: $41.54712

EC7B-24S25N

DC DC CONVERTER 2.5V 15W

  • 1: $41.96250
  • 12: $41.54712

EC7B-24S33N

DC DC CONVERTER 3.3V 17W

  • 1: $41.96250
  • 12: $41.54712

EC7B-24S05N

DC DC CONVERTER 5V 20W

  • 1: $41.96250
  • 12: $41.54712

EC7B-24S12N

DC DC CONVERTER 12V 20W

  • 1: $41.96250
  • 12: $41.54712

EC7B-24S15N

DC DC CONVERTER 15V 20W

  • 1: $41.96250
  • 12: $41.54712

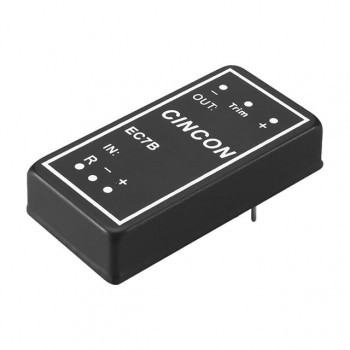

EC7B-24D12N
