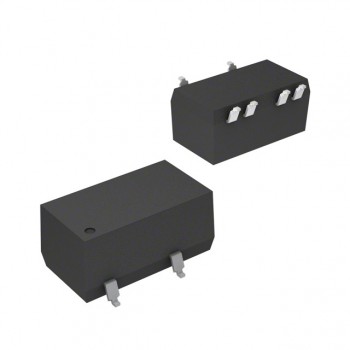

RSD-1515/H-R

Technical Details

• Series:ECONOLINE RSD (1W)
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):13.5V
• Voltage - Input (Max):16.5V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):33mA, 33mA
• Power (Watts):1 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial), Medical
• Features:SCP
• Operating Temperature:-40°C ~ 85°C
• Efficiency:82%
• Mounting Type:Surface Mount
• Package / Case:10-SMD Module, 6 Leads
• Size / Dimension:0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
