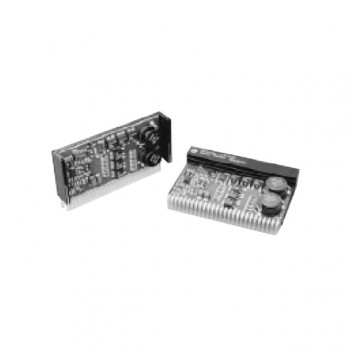

PT7701C

Technical Details

• Series:PT7700
• Package:Tray
• Part Status:Obsolete
• Type:Non-Isolated PoL Module
• Number of Outputs:1
• Voltage - Input (Min):4.5V
• Voltage - Input (Max):5.5V
• Voltage - Output 1:2 ~ 3.5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):15A
• Power (Watts):-

• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Features:-
• Operating Temperature:0°C ~ 55°C
• Efficiency:89%
• Mounting Type:Surface Mount
• Package / Case:27-SMD Module
• Size / Dimension:3.00" L x 1.50" W x 0.55" H (76.2mm x 38.1mm x 14.0mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
