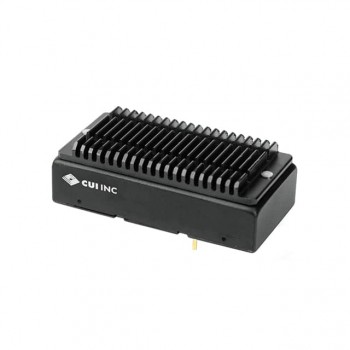

PYB15-Q24-D15-H

Technical Details

• Series:PYB15 (15W)
• Package:Tube
• Part Status:Obsolete
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):500mA, 500mA
• Power (Watts):15 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:OCP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 85°C
• Efficiency:88%
• Mounting Type:Through Hole
• Package / Case:6-DIP Module
• Size / Dimension:2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
• Supplier Device Package:-
• Control Features:Enable, Active High
• Approval Agency:-
• Standard Number:-
