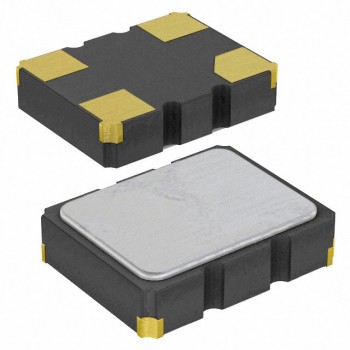

520M15DA16M3680
CTS Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionXTAL OSC VCTCXO 16.3680MHZ SNWV
- CategoryOscillators
- Datasheet 520M15DA16M3680 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$1.95757
- 3,000$1.86435
Quote It
Technical Details
- Series:520
- Package:Tape & Reel (TR)
- Part Status:Active
- Base Resonator:Crystal
- Type:VCTCXO
- Frequency:16.368 MHz
- Function:-
- Output:Clipped Sine Wave
- Voltage - Supply:1.8V
- Frequency Stability:±1.5ppm
- Absolute Pull Range (APR):-
- Operating Temperature:-30°C ~ 85°C
- Spread Spectrum Bandwidth:-
- Current - Supply (Max):2mA
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:4-SMD, No Lead
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.031" (0.80mm)
