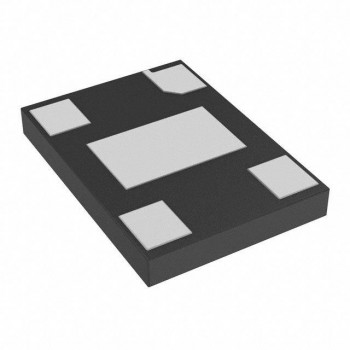

DSC1001AE2-012.2880
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMEMS OSC XO 12.2880MHZ CMOS SMD
- CategoryOscillators
- Datasheet DSC1001AE2-012.2880 Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DSC1001
- Package:Tube
- Part Status:Active
- Base Resonator:MEMS
- Type:XO (Standard)
- Frequency:12.288 MHz
- Function:Standby (Power Down)
- Output:CMOS
- Voltage - Supply:1.8 ~ 3.3V
- Frequency Stability:±25ppm
- Absolute Pull Range (APR):-
- Operating Temperature:-20°C ~ 70°C
- Spread Spectrum Bandwidth:-
- Current - Supply (Max):6.3mA
- Ratings:AEC-Q100
- Mounting Type:Surface Mount
- Package / Case:4-SMD, No Lead Exposed Pad
- Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):0.035" (0.90mm)
