In Stock: 4,958

Can ship immediately

Pricing:
  • 1$1.77
  • 10$1.603
  • 100$1.374
  • 500$1.14502
  • 1,000$0.98145
  • 5,000$0.9451

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):2A
  • Voltage Rating:150V

Related Products


3-641213-6

CONN HEADER VERT 6POS 2.54MM

3-641213-6 Datasheet
  • 1: $1.77000
  • 10: $1.61939
  • 100: $1.40556

5-104935-2

CONN HEADER R/A 8POS 2.54MM

5-104935-2 Datasheet
  • 1: $1.77000
  • 23: $1.60863
  • 115: $1.37878

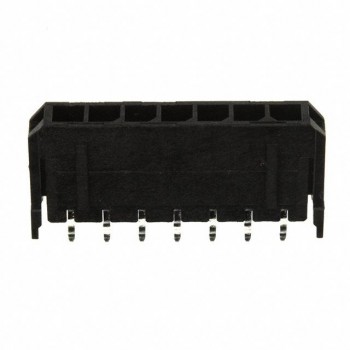

0436500715

CONN HEADER VERT 7POS 3MM

0436500715 Datasheet
  • 1: $1.77000
  • 10: $1.60205
  • 100: $1.37276

M50-3650542R

CONN HEADER SMD 10POS 1.27MM

M50-3650542R Datasheet
  • 1: $2.53000
  • 250: $1.83352
  • 500: $1.68876

68001-436HLF

CONN HEADER VERT 36POS 2.54MM

68001-436HLF Datasheet
  • 1: $1.78000
  • 10: $1.61729
  • 100: $1.38578

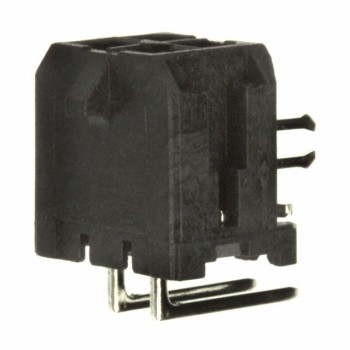

0430450421

CONN HEADER R/A 4POS 3MM

0430450421 Datasheet
  • 1: $1.78000
  • 10: $1.61515
  • 100: $1.38435

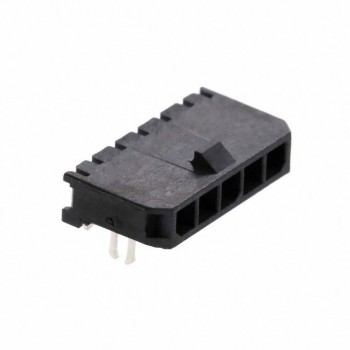

0436500509

CONN HEADER SMD R/A 5POS 3MM

  • 1: $2.53000

234832

MAXIBR M 02POS RA A SMT BK

  • 1: $2.60000

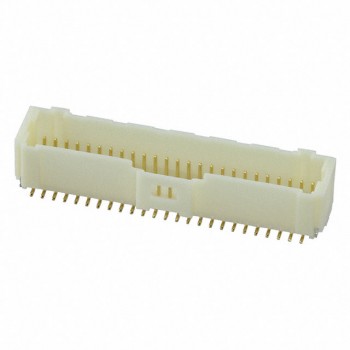

5011905027

CONN HEADER SMD 50POS 1MM

5011905027 Datasheet
  • 1: $3.05000
  • 1100: $1.76987
  • 2200: $1.70884

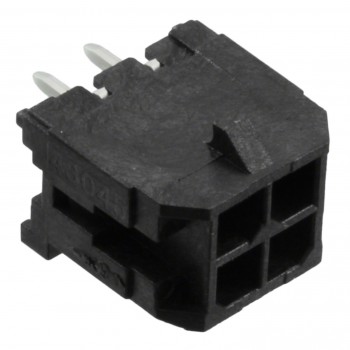

0430450429
