In Stock: 2,432

Can ship immediately

Pricing:
  • 1$2.08
  • 10$1.89325
  • 100$1.6224
  • 500$1.35203
  • 1,000$1.15889
  • 5,000$1.02755
  • 10,000$1.00437

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.533" (13.55mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


98414-G06-14LF

CONN HEADER VERT 14POS 2MM

98414-G06-14LF Datasheet
  • 1: $2.08000
  • 10: $1.88733
  • 100: $1.61802

5-102618-1

CONN HEADER VERT 6POS 2.54MM

5-102618-1 Datasheet
  • 1: $2.09000
  • 10: $1.89990
  • 464: $1.47379

5-104363-7

CONN HEADER VERT 8POS 2.54MM

5-104363-7 Datasheet
  • 1: $2.09000
  • 23: $1.89568
  • 115: $1.62502

XG4A-3031

CONN HEADER VERT 30POS 2.54MM

XG4A-3031 Datasheet
  • 1: $2.09000
  • 50: $1.70414
  • 100: $1.62672

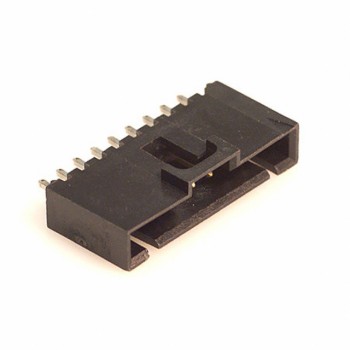

0705430008

CONN HEADER VERT 9POS 2.54MM

0705430008 Datasheet
  • 1: $2.09000
  • 10: $1.89917
  • 100: $1.62818

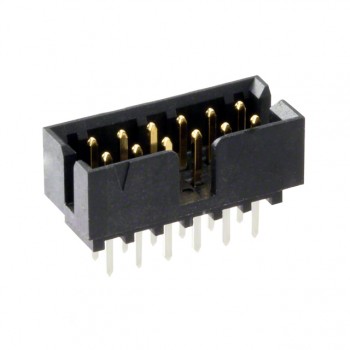

0878311221

CONN HEADER VERT 12POS 2MM

0878311221 Datasheet
  • 1: $2.09000
  • 10: $1.89614
  • 100: $1.62566

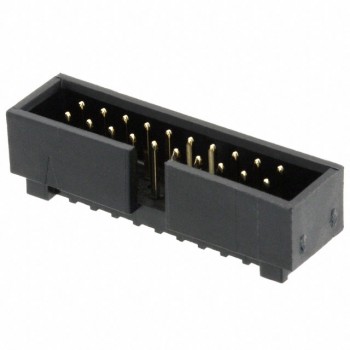

0702462004
