6-103639-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 12POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 6-103639-1 Datasheet
-
ECAD Model
- Share
In Stock: 1,723
Can ship immediately
Pricing:
- 1$2.33
- 16$2.11157
- 112$1.81001
- 512$1.50836
- 1,008$1.29287
- 5,008$1.14635
Quote It
Technical Details
- Series:AMPMODU MTE
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:12
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:0.545" (13.84mm)
- Insulation Height:0.535" (13.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products
CONN HDR 2POS 10.16MM
- 1: $2.37000

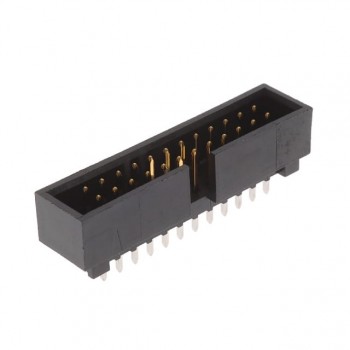

CONN HEADER VERT 24POS 2.54MM
- 1: $2.37000

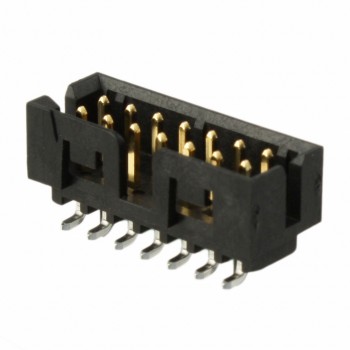

CONN HEADER SMD 14POS 2MM
