In Stock: 1,828

Can ship immediately

Pricing:
  • 1$2.48
  • 23$2.26921
  • 115$1.96933
  • 506$1.66961
  • 1,012$1.45556
  • 5,014$1.30999

Quote It

Technical Details

  • Series:Minitek127® 1.27mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:0.309" (7.86mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


5-103168-2

CONN HEADER VERT 8POS 2.54MM

5-103168-2 Datasheet
  • 1: $2.48000
  • 10: $2.24529
  • 184: $1.92486

0460150409

CONN HEADER VERT 4POS 4.2MM

0460150409 Datasheet
  • 1: $2.49000
  • 10: $2.25612
  • 100: $1.93393

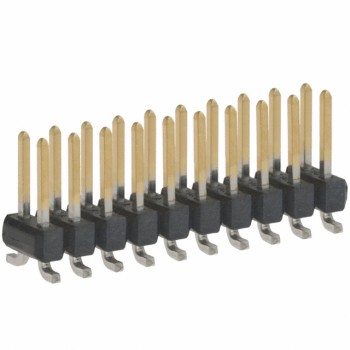

0015910200

CONN HEADER SMD 20POS 2.54MM

0015910200 Datasheet
  • 1: $2.49000
  • 10: $2.26124
  • 100: $1.93795

350429-4

CONN HEADER VERT 3POS 6.35MM

350429-4 Datasheet
  • 1: $2.49000
  • 10: $2.26157
  • 100: $1.93819

3-641210-4

CONN HEADER R/A 4POS 3.96MM

3-641210-4 Datasheet
  • 1: $2.50000
  • 10: $2.27057
  • 100: $1.94578

XG4C-3431

CONN HEADER VERT 34POS 2.54MM

XG4C-3431 Datasheet
  • 1: $2.51000
  • 60: $2.04199
  • 120: $1.94926

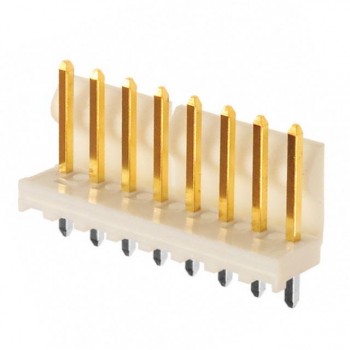

0026614080
