In Stock: 3,069

Can ship immediately

Pricing:
  • 1$2.6
  • 10$2.36159
  • 100$2.02398
  • 500$1.6866
  • 1,000$1.44567
  • 5,000$1.28182

Quote It

Technical Details

  • Series:Mini-Universal MATE-N-LOK
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.163" (4.14mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.163" (4.14mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.175" (4.45mm)
  • Overall Contact Length:-
  • Insulation Height:0.531" (13.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Lock
  • Operating Temperature:-20°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


0878335321

CONN HEADER R/A 14POS 2MM

0878335321 Datasheet
  • 1: $2.60000
  • 32: $2.14996
  • 128: $1.97075

5-103166-2

CONN HEADER R/A 8POS 2.54MM

5-103166-2 Datasheet
  • 1: $2.60000
  • 10: $2.36444
  • 184: $2.02644

72454-014LF

CONN HEADER SMD 14POS 2.54MM

72454-014LF Datasheet
  • 1: $2.60000
  • 10: $2.36844
  • 168: $2.05586

4-103321-0

CONN HEADER VERT 40POS 2.54MM

4-103321-0 Datasheet
  • 1: $2.61000
  • 10: $2.36319
  • 100: $2.02587

0026481241

CONN HEADER VERT 24POS 3.96MM

0026481241 Datasheet
  • 1: $2.61000
  • 10: $2.37300
  • 100: $2.03400

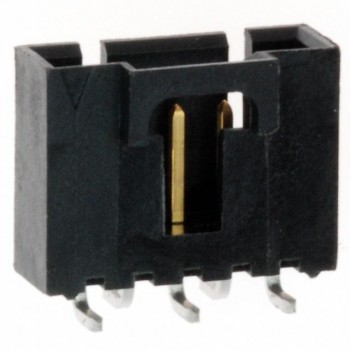

0740991005

CONN HEADER SMD 5POS 2.54MM

0740991005 Datasheet
  • 1: $2.61000
  • 10: $2.50783
  • 100: $2.09002

0015800101

CONN HEADER VERT 10POS 2.54MM

0015800101 Datasheet
  • 1: $2.61000
  • 10: $2.50117
  • 100: $2.08437

957220-6002-AR

CONN HEADER VERT 20POS 2MM

957220-6002-AR Datasheet
  • 1: $2.61000
  • 10: $2.51350
  • 480: $1.89684

67996-272HLF

CONN HEADER VERT 72POS 2.54MM

67996-272HLF Datasheet
  • 1: $2.61000
  • 10: $2.36975
  • 100: $2.03165

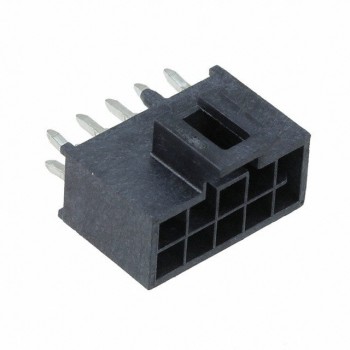

1053101210
