In Stock: 3,037

Can ship immediately

Pricing:
  • 1$3.87
  • 50$3.29724
  • 100$3.15374
  • 500$2.72366
  • 1,000$2.36529
  • 5,000$2.15026

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:-
  • Insulation Height:0.360" (9.14mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:-
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


0901303216

CONN HEADER R/A 16POS 2.54MM

  • 1: $3.87000

M50-3552042

CONN HEADER VERT 40POS 1.27MM

M50-3552042 Datasheet
  • 1: $3.87000
  • 10: $3.71732
  • 100: $3.09812

0878322220

CONN HEADER SMD 22POS 2MM

  • 1: $3.91000

HIF3FC-40PA-2.54DSA(71)

CONN HEADER VERT 40POS 2.54MM

  • 1: $3.91000
  • 10: $3.74850
  • 200: $3.12375

0015912055

CONN HEADER SMD R/A 5POS 2.54MM

0015912055 Datasheet
  • 1: $3.92000
  • 10: $3.76542
  • 100: $3.13762

850-10-005-10-003000

CONN HEADER VERT 5POS 1.27MM

850-10-005-10-003000 Datasheet
  • 1: $3.92000
  • 10: $3.55958
  • 100: $3.05091

6-103735-9

CONN HEADER VERT 20POS 2.54MM

6-103735-9 Datasheet
  • 1: $3.95000
  • 10: $3.79264
  • 100: $3.16075

M80-8280442

CONN HEADER SMD 4POS 2MM

M80-8280442 Datasheet
  • 1: $3.95000
  • 32: $3.47147
  • 128: $3.15577

N3627-6202RB

CONN HEADER VERT 24POS 2.54MM

N3627-6202RB Datasheet
  • 1: $3.96000
  • 10: $3.80160
  • 100: $3.16800

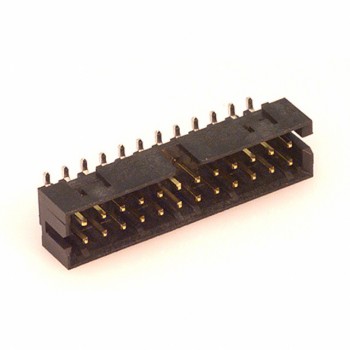

0878322420
