1-770967-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 3POS 4.14MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-770967-1 Datasheet
-
ECAD Model
- Share
In Stock: 3,392
Can ship immediately
Pricing:
- 1$4.07
- 10$3.90572
- 100$3.25494
- 500$2.76671
- 1,000$2.35984
- 5,000$2.11572
Quote It
Technical Details
- Series:Mini-Universal MATE-N-LOK
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.163" (4.14mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.145" (3.68mm)
- Overall Contact Length:-
- Insulation Height:0.225" (5.72mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock
- Operating Temperature:-20°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC
Related Products

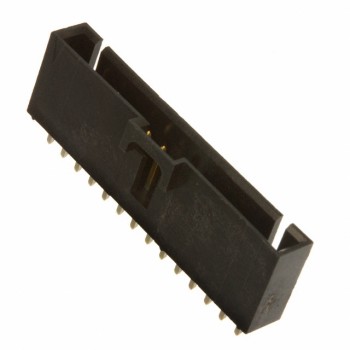

CONN HEADER VERT 40POS 2MM
