0430451800

Woodhead - Molex
In Stock: 307

Can ship immediately

Pricing:
  • 1$4.48
  • 10$4.29939
  • 100$3.58279
  • 720$3.04537
  • 1,440$2.59752

Quote It

Technical Details

  • Series:Micro-Fit 3.0 43045
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):8A
  • Voltage Rating:600V

Related Products


2-1761603-6

CONN HEADER VERT 16POS 2.54MM

2-1761603-6 Datasheet
  • 1: $4.49000
  • 10: $4.31208
  • 100: $3.59347

0901301130

CONN HEADER VERT 30POS 2.54MM

0901301130 Datasheet
  • 1: $4.52000
  • 10: $4.34078
  • 100: $3.61758

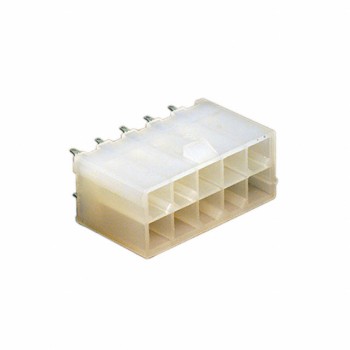

0039290103

CONN HEADER VERT 10POS 4.2MM

0039290103 Datasheet
  • 1: $4.52000
  • 10: $4.34361
  • 100: $3.61961

N3429-6303RB

CONN HEADER VERT 26POS 2.54MM

N3429-6303RB Datasheet
  • 1: $4.52000
  • 10: $4.33899
  • 100: $3.61600

M80-8671222

CONN HEADER VERT 12POS 2MM

M80-8671222 Datasheet
  • 1: $4.53000
  • 16: $4.34345
  • 112: $3.61976

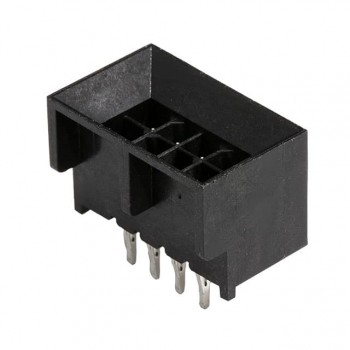

0452800852

CONN HEADER VERT 8POS 3MM

0452800852 Datasheet
  • 1: $4.53000
  • 10: $4.34638
  • 100: $3.62218

M80-8411442

CONN HEADER R/A 14POS 2MM

M80-8411442 Datasheet
  • 1: $4.53000
  • 14: $4.34403
  • 112: $3.61976

M50-3602542

CONN HEADER SMD 50POS 1.27MM

M50-3602542 Datasheet
  • 1: $4.54000
  • 10: $4.35374
  • 100: $3.62776

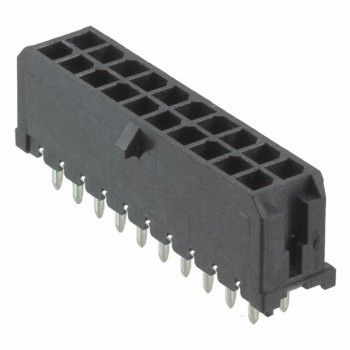

0430452027

CONN HEADER VERT 20POS 3MM

0430452027 Datasheet
  • 1: $4.57000
  • 10: $4.38438
  • 25: $4.01878

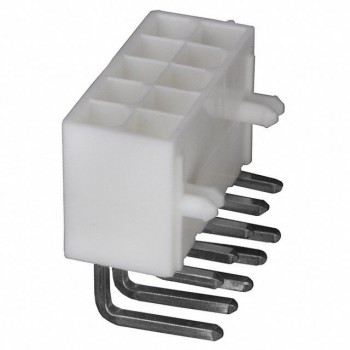

0039301102
