In Stock: 120

Can ship immediately

Pricing:
  • 1$4.69
  • 10$4.2
  • 100$3.4587
  • 500$2.73402
  • 1,000$2.379

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.400" (10.16mm)
  • Overall Contact Length:-
  • Insulation Height:0.140" (3.56mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

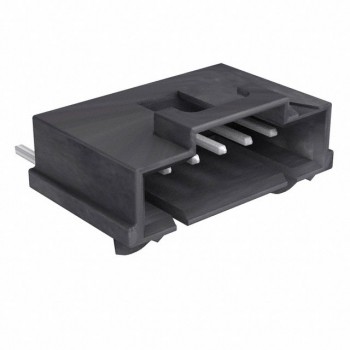

0015913064

CONN HEADER SMD R/A 6POS 2.54MM

0015913064 Datasheet
  • 1: $4.70000
  • 10: $4.51200
  • 100: $3.76000

6-103166-0

CONN HEADER R/A 24POS 2.54MM

6-103166-0 Datasheet
  • 1: $4.70000
  • 72: $3.88281
  • 144: $3.78064

2-1761608-3

CONN HEADER VERT 10POS 2.54MM

2-1761608-3 Datasheet
  • 1: $4.71000
  • 26: $4.14598
  • 104: $3.76922

M80-8531442

CONN HEADER VERT 14POS 2MM

M80-8531442 Datasheet
  • 1: $4.72000
  • 14: $4.53363
  • 112: $3.77808

M80-8671422

CONN HEADER VERT 14POS 2MM

M80-8671422 Datasheet
  • 1: $4.72000
  • 14: $4.53363
  • 112: $3.77808

1761607-3

CONN HEADER R/A 10POS 2.54MM

1761607-3 Datasheet
  • 1: $4.73000
  • 26: $4.20423
  • 104: $3.85361

178326-2

CONN HEADER VERT 12POS 3.81MM

178326-2 Datasheet
  • 1: $4.74000
  • 10: $4.55630
  • 100: $3.79643

XG4C-6431

CONN HEADER VERT 64POS 2.54MM

XG4C-6431 Datasheet
  • 1: $4.79000
  • 30: $4.21079
  • 120: $3.82799

2-1761607-3

CONN HEADER R/A 10POS 2.54MM

2-1761607-3 Datasheet
  • 1: $4.75000
  • 26: $4.22368
  • 104: $3.87163

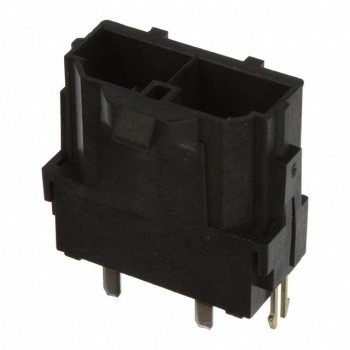

0428192212
