5-826629-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 50POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5-826629-0 Datasheet
-
ECAD Model
- Share
In Stock: 1,287
Can ship immediately
Pricing:
- 1$5.21
- 10$5.00508
- 100$4.17062
- 500$3.54507
- 1,000$3.02373
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:50
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.264" (6.70mm)
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:0.500" (12.70mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.90µin (0.099µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Green
- Current Rating (Amps):5A
- Voltage Rating:-
Related Products

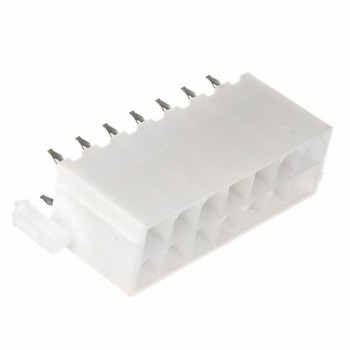

CONN HEADER VERT 14POS 4.2MM
