0705530019
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 20POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0705530019 Datasheet
-
ECAD Model
- Share
In Stock: 1,506
Can ship immediately
Pricing:
- 1$6.32
- 10$6.06117
- 400$4.4799
- 800$3.95285
- 1,200$3.68933
Quote It
Technical Details
- Series:SL 70553
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.215" (5.45mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:250V
Related Products

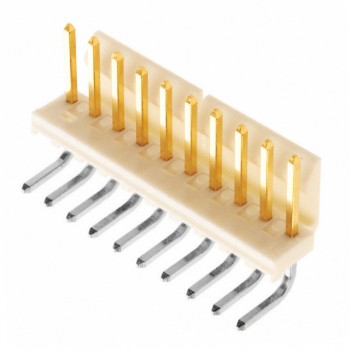

CONN HEADER R/A 10POS 3.96MM
