1720650010
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 5.7MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1720650010 Datasheet
-
ECAD Model
- Share
In Stock: 479
Can ship immediately
Pricing:
- 1$6.72
- 10$6.46614
- 100$5.43153
- 640$4.65562
- 1,280$4.13833
Quote It
Technical Details
- Series:Mega-Fit
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.224" (5.70mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.224" (5.70mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.147" (3.73mm)
- Overall Contact Length:-
- Insulation Height:0.583" (14.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Copper
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide, Glow Wire Compliant
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

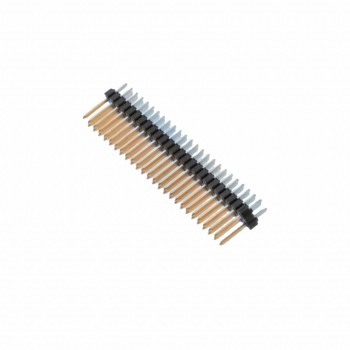

CONN HEADER VERT 50POS 2.54MM
