In Stock: 1,005

Can ship immediately

Pricing:
  • 1$7.29
  • 13$7.0124
  • 104$5.89086
  • 507$5.04929
  • 1,001$4.48825

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.237" (6.02mm)



  • Contact Length - Post:0.102" (2.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.404" (10.26mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:250VAC

Related Products


1-1318853-3

CONN HEADER R/A 24POS 2.2MM

1-1318853-3 Datasheet
  • 1: $7.32000
  • 14: $7.01500
  • 112: $5.79500

640499-4

CONN HEADER VERT 4POS 4.2MM

640499-4 Datasheet
  • 1: $7.34000
  • 10: $7.03149
  • 100: $5.80881

5499910-7

CONN HEADER VERT 30POS 2.54MM

5499910-7 Datasheet
  • 1: $7.34000
  • 10: $7.05610
  • 100: $5.92651

G125-MV12605L1P

CONN HEADER VERT 26POS 1.25MM

G125-MV12605L1P Datasheet
  • 1: $7.34000
  • 10: $7.03338
  • 100: $5.80984

178308-3

CONN HEADER R/A 20POS 3.81MM

178308-3 Datasheet
  • 1: $7.35000
  • 10: $7.04482
  • 100: $5.81977

SMH100-LPSE-S40-ST-BK

CONN HEADER VERT 40POS 1MM

SMH100-LPSE-S40-ST-BK Datasheet
  • 1: $7.37000
  • 10: $7.04900
  • 100: $5.92740

6-103166-1

CONN HEADER R/A 26POS 2.54MM

6-103166-1 Datasheet
  • 1: $7.40000
  • 64: $6.16738
  • 128: $5.85896

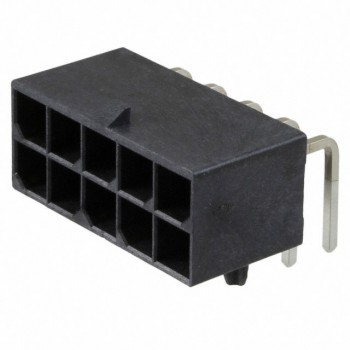

1720640010
